AISEN

Explore AISEN’s core vision product lineup, optimized for real-world requirements.

Uncooled LWIR Thermal Imager

AISEN-TI

SENSE BEYOND VISIBLE
THINK BEYOND THERMAL

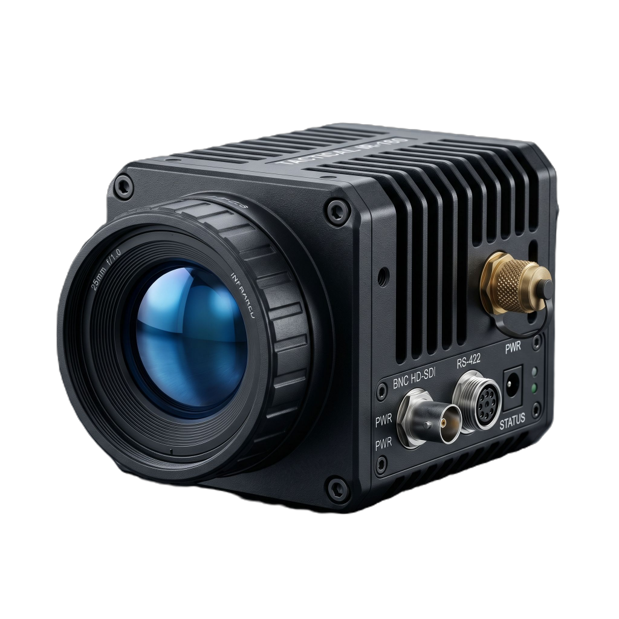

The AISEN-TI Advanced
Thermal Imager

A versatile solution with selectable
lenses and interfaces

Deployable in surveillance, weapon sights,
vehicular systems, robotics, and UAVs

Weight	86.5g ± 5.0g (UVC) 80g ± 5.0 (GMSL)

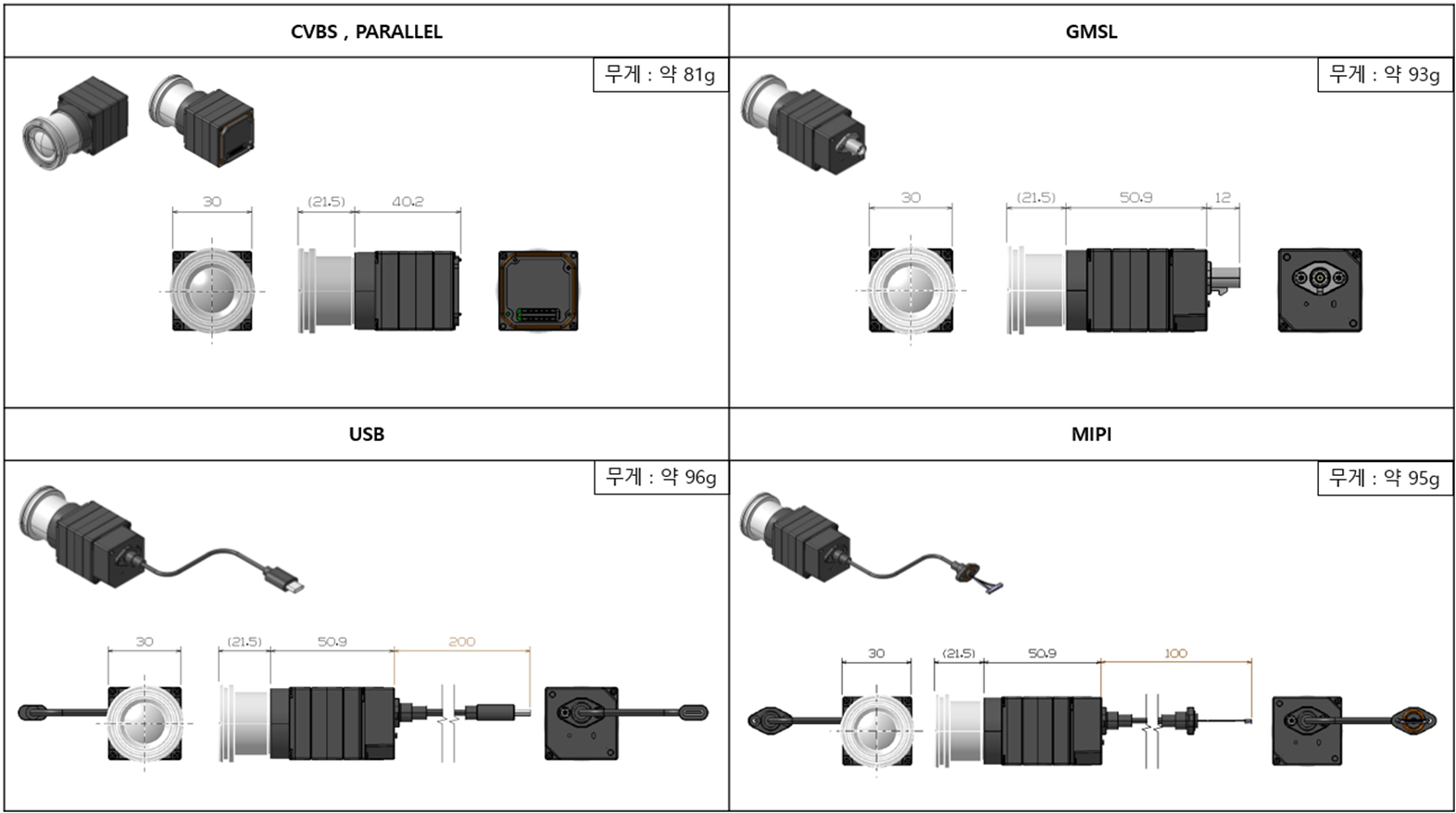

Size	30 × 30 × 58.9mm (UVC)
Operating Temp	-40°C ~ 85°C
Power Consumption	< 3W
Dust/Waterproof	IP67 (UVC, GMSL)
Output Interface	Single selectable output interface • UVC (USB-C) • GMSL (FAKRA) • MIPI (CSI-2) • Parallel (BT.656) • CVBS (Analog)
Input Voltage	• UVC, MIPI, Parallel DC 5.0V ±5% • GMSL DC 12.0V
Lens	5 Off-the-Shelf Lens Options • HFOV 17°, 32°, 42°, 75°, 95° Custom Optics Available

Weight	86.5g ± 5.0g (UVC) 80g ± 5.0 (GMSL)
Size	30 × 30 × 58.9mm (UVC)
Operating Temp	-40°C ~ 85°C
Power Consumption	< 3W
Dust/Waterproof	IP67 (UVC, GMSL)
Output Interface	Single selectable output interface • UVC (USB-C) • GMSL (FAKRA) • MIPI (CSI-2) • Parallel (BT.656) • CVBS (Analog)
Input Voltage	• UVC, MIPI, Parallel DC 5.0V ±5% • GMSL DC 12.0V
Lens	5 Off-the-Shelf Lens Options • HFOV 17°, 32°, 42°, 75°, 95° Custom Optics Available
