AISEN-TI
Uncooled LWIR Thermal Imager
AISEN-TI
SENSE BEYOND VISIBLE
THINK BEYOND THERMAL
MAIN TECHNICAL ATTRIBUTES
| Weight | 86.5g ± 5.0g (UVC) 80g ± 5.0 (GMSL) |
|---|---|
| Size | 30 × 30 × 58.9mm (UVC) |
| Operating Temp | -40°C ~ 85°C |
| Power Consumption | < 3W |
| Dust/Waterproof | IP67 (UVC, GMSL) |
| Output Interface | Single selectable output interface • UVC (USB-C) • GMSL (FAKRA) • MIPI (CSI-2) • Parallel (BT.656) • CVBS (Analog) |
| Input Voltage | • UVC, MIPI, Parallel DC 5.0V ±5% • GMSL DC 12.0V |
| Lens | 5 Off-the-Shelf Lens Options • HFOV 17°, 32°, 42°, 75°, 95° Custom Optics Available |
THERMAL IMAGER TECHNICAL ATTRIBUTES
| Weight | 86.5g ± 5.0g (UVC) 80g ± 5.0 (GMSL) |
|---|---|
| Size | 30 × 30 × 58.9mm (UVC) |
| Operating Temp | -40°C ~ 85°C |
| Power Consumption | < 3W |
| Dust/Waterproof | IP67 (UVC, GMSL) |
| Output Interface | Single selectable output interface • UVC (USB-C) • GMSL (FAKRA) • MIPI (CSI-2) • Parallel (BT.656) • CVBS (Analog) |
| Input Voltage | • UVC, MIPI, Parallel DC 5.0V ±5% • GMSL DC 12.0V |
| Lens | 5 Off-the-Shelf Lens Options • HFOV 17°, 32°, 42°, 75°, 95° Custom Optics Available |

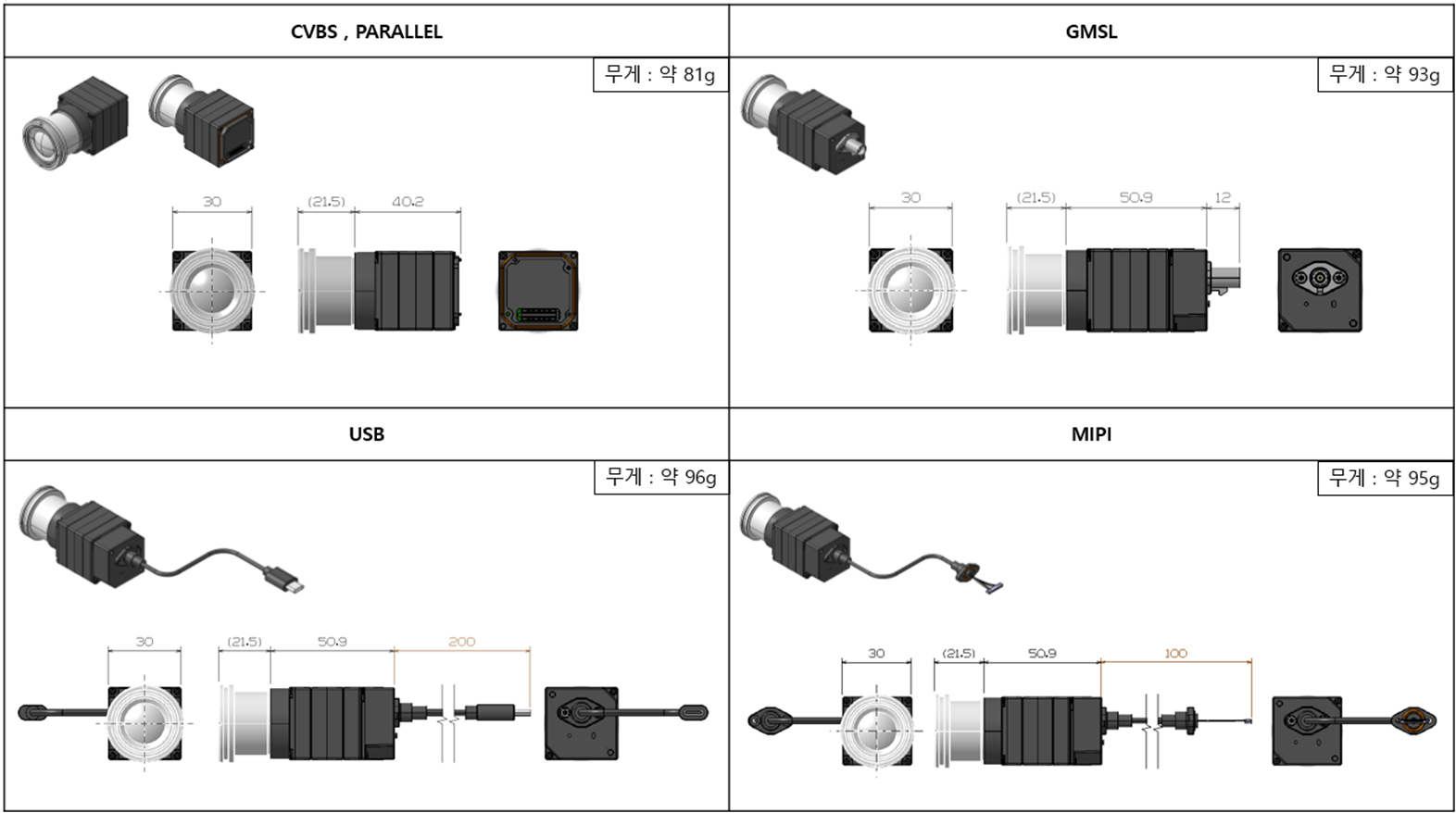

Dimension Drawing
