AISEN-HY

AISEN-HY

FPV EO/IR Camera

AISEN-HY

SENSE BEYOND VISIBLE
THINK BEYOND THERMAL

An ultra-lightweight FPV
Drone Camera
Selectable RGB & VGA thermal (LWIR) outputs
External EO/IR gimbal
compatibility

ELECTRO-OPTICAL TECHNICAL ATTRIBUTES

Sensor TypeCMOS 2.1MP · Built-in ISP (CVBS 640x480)
IR Cut400-700 ㎚
RGB FOVHFOV 60º/100º/140º
Frame Rate30Hz / 60Hz
ZoomDigital Zoom

KEY FEATURES

Weight67.4g (Non Gimbal)
Size33 × 43 × 41mm
Input Power12V
Operating Temp-20°C ~ +55°C
Dust/WaterproofIP54
Output Interface• Analog CVBS (Select EO or IR)
• MIPI (EO and IR Integrated)
• GMSL
• Ethernet
Input Voltage• UVC, MIPI, Parallel DC 5.0V ±5%
• GMSL DC 12.0V

THERMAL IMAGER TECHNICAL ATTRIBUTES

Sensor TypeUncooled Micro-Bolometer
IR ResolutionVGA 640x480, LWIR 8μm ~ 12μm
NETD< 50mK
IR FOVHFOV 32º
Frame Rate30Hz / 60Hz
Image Processing• NUC, Tec-less, De-Noising, DDE, CEM

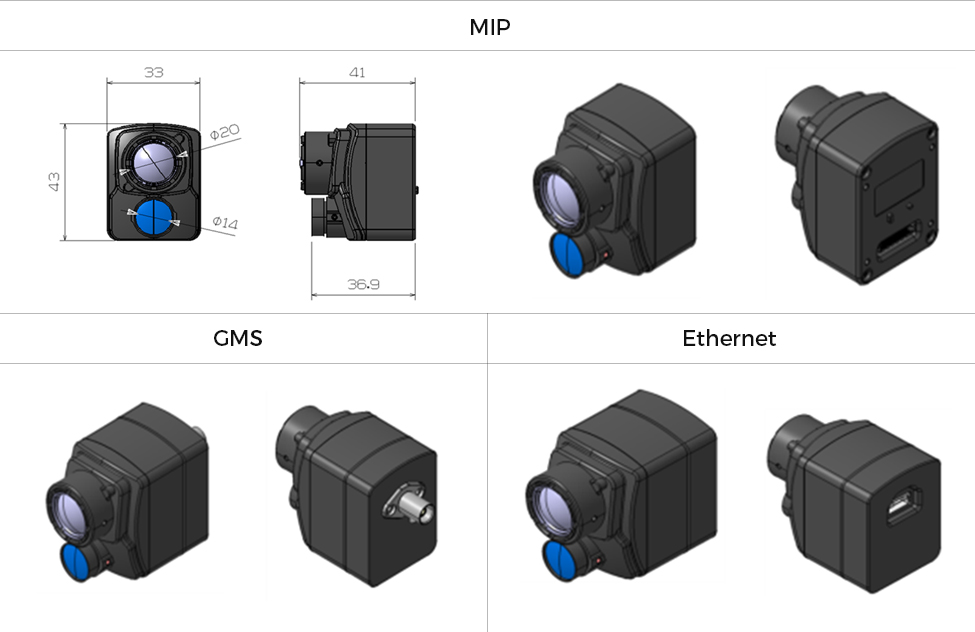

Dimension Drawing
