AISEN-BOX

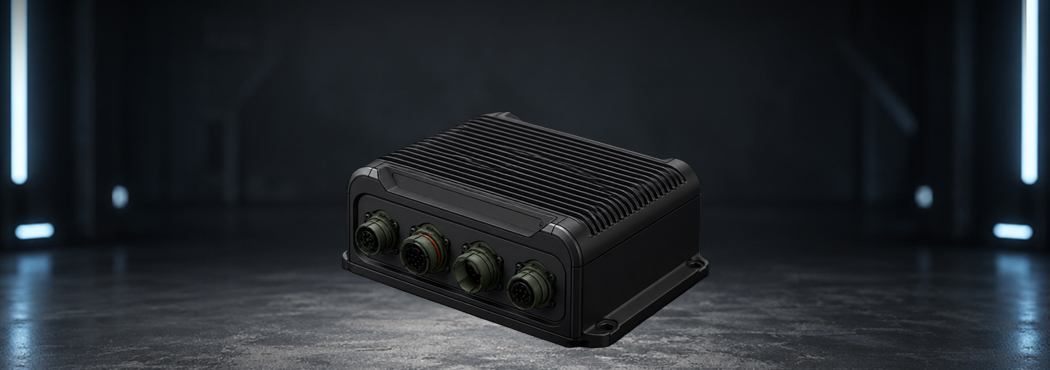

AISEN-BOX

MIL Grade Edge AI BOX - Based NVIDIA Jetson Orin NX (16GB)

AISEN-BOX

PROCESS BEYOND VISION
INTELLIGENCE AT THE EDGE

Edge AI.
Real-Time Processing
From Video Input to Intelligent
Output
Built for Multi-Camera Vision
Systems

System Overview

Compute ModuleNVIDIA Jetson Orin NX (16GB)
ArchitectureNX Module + Custom Expansion Board
Camera InputMIPI CSI-2 (4-Lane per Channel)

INTERFACE / SOFTWARE

Video OutputHDMI 2.0 ×1
EthernetGigabit Ethernet x 5
USBUSB 3.0 x 1
USB 2.0 x 1 (FW Update Only)
Serial InterfaceRS-232 x 2
RS-422 x 2
RS-485 x 2
CAN x 2
Storage2TB SSD (M.2 2280)
Reserved M.2 Slot
S/WUbuntu (JetPack)
NVIDIA AI SDK
Real-time Object Detection (YOLO)

ELECTRICAL / MECHNICAL

Input Voltage9~40V DC
Nominal Voltage28V
StandardMIL-STD-1275E
Size / Weight240 x 177 x 88mm / 2.84kg
IPIP67 (Including Connector)
Operating Temp-25°C ~ +70°C
Storage Temp-25°C ~ +85°C

MIL-STD-810F (Environmental)
MIL-STD-461F (EMC/EMI)
MIL-STD-1275E (Power)
MIL-level Coating & Conformal Coating

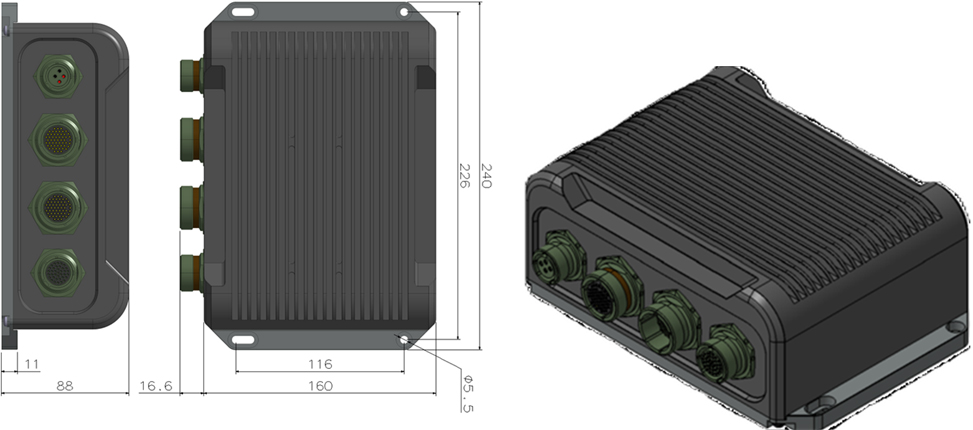

Dimension Drawing
